Water Supply & Treatment Projects
Managing and implementing projects related to water treatment and distribution is of utmost importance and gives rise to the need to plan, work, and dedicate oneself to the betterment of the communities served. This was a unique experience for me, since I was given the responsibilities of managing such vital projects, which included the detailed design and construction of advanced water treatment plants, the complex layout of pipelines and infrastructure for efficient water distribution, and working closely with local governments and other parties to fairly distribute this commodity.
Managing such projects provided the opportunity to appreciate the benefits that clean water can provide to the communities, from better health and hygiene to improved agriculture and economic activities. However, I found it a rewarding experience knowing that my efforts are geared towards providing this basic need to the people, and I am happy that I was given such an important project.
My Water Projects by Country
or just scroll down, to see it in reverse-chronological order

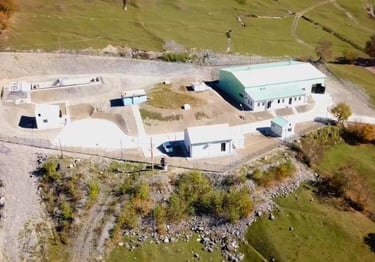

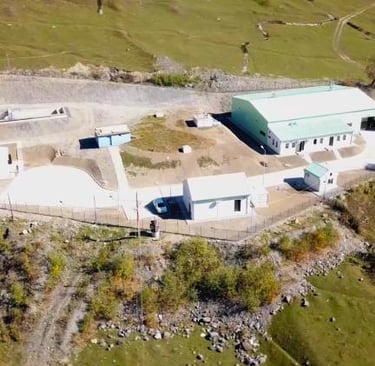

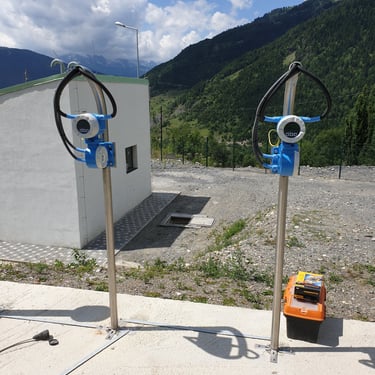

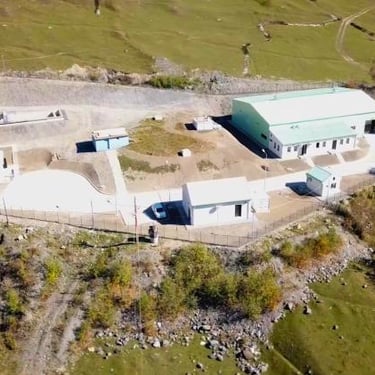

Design, Supply, Construction and Installation of the Water Treatment Plant, Reservoirs and Transmission Lines for Water Supply in Mestia, Georgia
Design, Supply, Installation Contract for Ureki Wastewater Treatment Plant, Georgia.
Contract No. trwSCG/usIIP/ICB/cWREG-02
Contract Value: 10.230.891,18 USD
MMy Role: from January 2017 until February 2018: The Contractor's EIA Project Manager
The Contractor: Joint Venture of Ludwig Pfeiffer Hoch - und Tiefbau GmbH & Co.KG and ProtecnoSrl
The Employer: United Water Supply Company of Georgia LLC
The Project Manager: EPTISA
The Project was financed by the Asian Development Bank (ADB), ADB Loan No: 3078-GEO.
The Project has been executed following the Harmonized ENAA Contract.
The Works comprise the design and construction of:

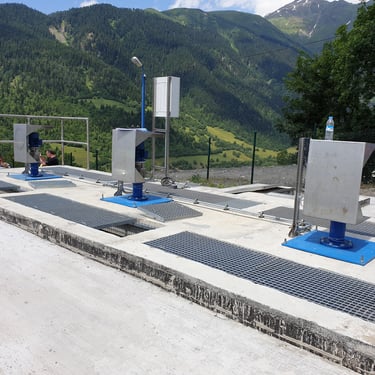

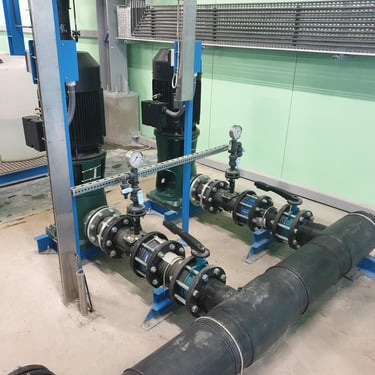

a new modular water treatment plant Zargashi (WTP)
the rehabilitation of Tsrniashi spring catchment
the rehabilitation of Lanchvali reservoir (1,000 m³)
a new reservoir at Lanchvali (1,000 m³)
a new high level reservoir (2,000 m³)
transmission pipes of approximately 9,200 meters

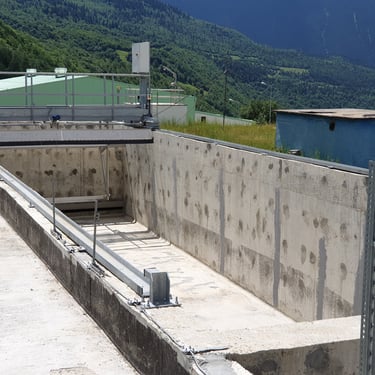

The WTP is designed for the capacity of 40 l/s for the year 2020.
Construction of Bulancak Drinking Water Supply System, Turkiye
Contract for Construction of Bulancak Water Supply System, Turkiye.
Contract No. 2009TR16IPR19-02/WKS/16
Contract Value: 9,808,614.84 EUR
My Role: from June 2016 until January 2017: The Contractor’s Representative Project manager
The Contractor: Joint Venture of Ludwig Pfeiffer Hoch - und Tiefbau GmbH & Co.KG, Vestan İnşaat A.Ş. and Aker İnşaat Muhendislik
The Employer: Ministry of Environment & Urbanization Department of European Investments
The Project Manager: WYG INTERNATIONAL DANIŞMANLIK LTD.ŞTİ.
The Project is financed by IPA Budget Item 13.05.02 of the General Budget of the EU and National Contribution.
The Project has been executed following the Harmonized FIDIC Yellow Book Contract.
Water demand of Bulancak Municipality is supplied by 6 registered deep wells. All inhabitants of Bulancak including those who live in the villages in the suburban area are directly connected to the water supply network.
Details of the construction works are indicatively given below;

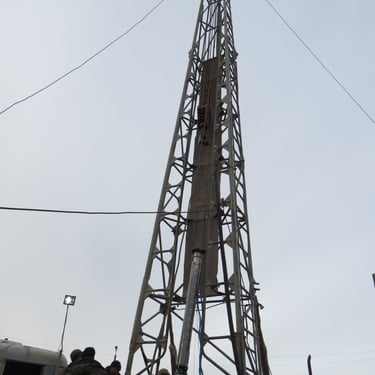

4 new deep wells are constructed (YK2, YK1a, YK4, YK5a)
3 existing wells are rehabilitated (K1, K2, K3)

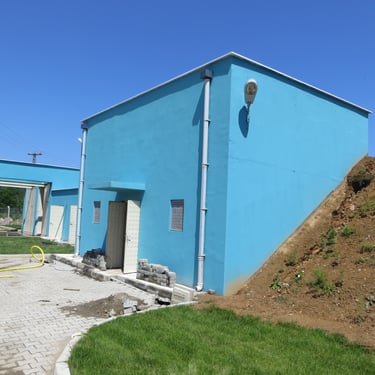

6 new reservoirs are constructed (DY1, DY2, DY3, DY8, DY11, DY12)
4 existing reservoirs are rehabilitated (DM7, DM9, DM10, DM Ucarli)

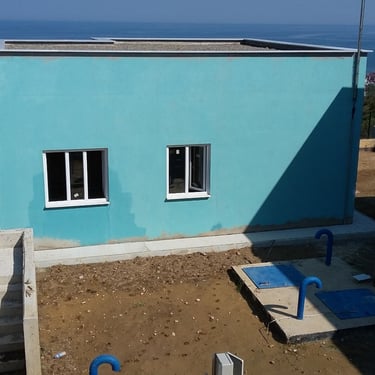

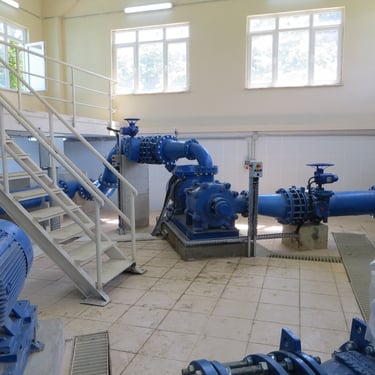

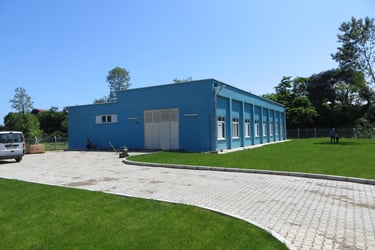

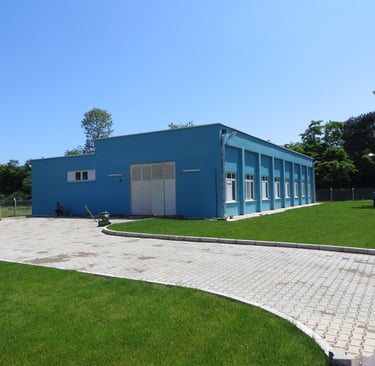

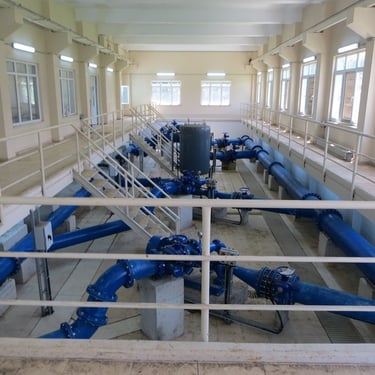

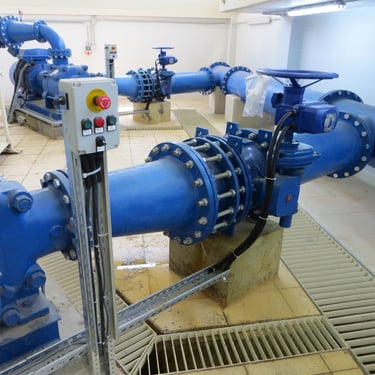

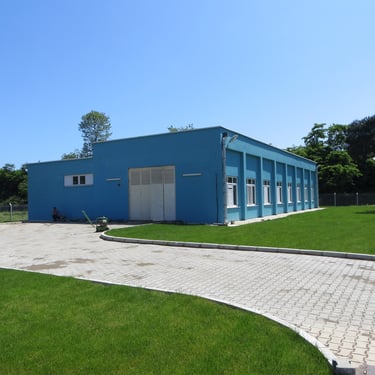

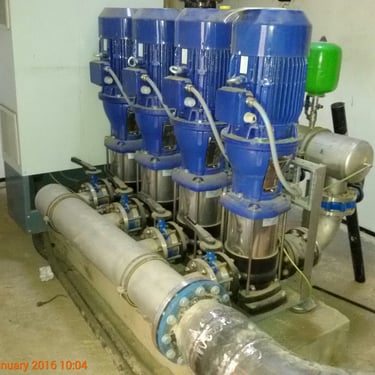

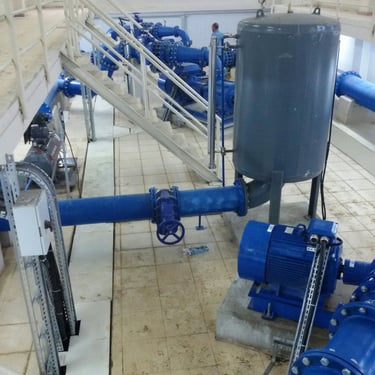

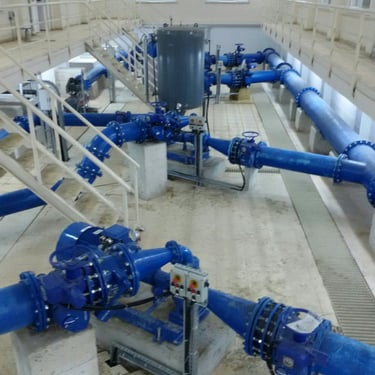

4 new pumping stations are constructed (TMY1, TMY2, TMY7, TMY9)
1 existing pumping station is rehabilitated (TM Ucarli)
App. 28.711 m of new ductile transmission lines are constructed
App. 96.706 m of new HDPE network lines are constructed
App. 4700 pcs of new house connections are constructed
Total Water Consumption for the year 2040. is 12.368 cubic meters per day (m³/d).

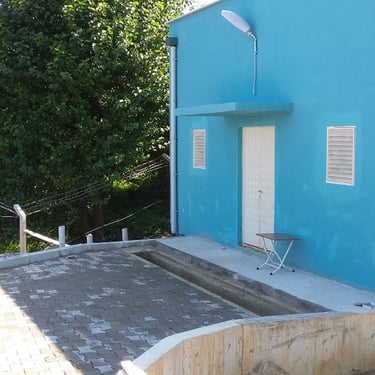

WSS Bulancak Photo Gallery

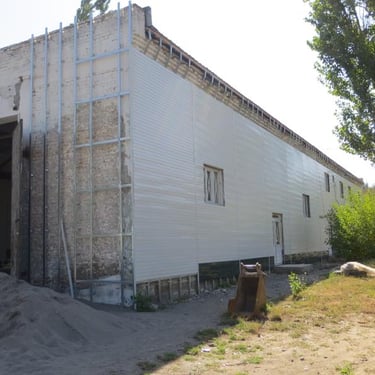

Improvement of Water Supply System for Osh City, Kyrgyzstan
Improvement of Water Supply System for Osh City, Kyrgyzstan.
Contract No. EARR/2268/CS/11
Contract Value: 10 mil USD
My Role: from June 2015 until June 2016: The Contractor's EIA Site Manager
The Contractor: Ludwig Pfeiffer Hoch - und Tiefbau GmbH & Co.KG
The Employer: State Agency of Architecture, Building and Housing and Communal Services at Government Kyrgyzstan, City administration of Osh
The Project Manager: EPTISA
The Project was financed by the Asian Development Bank (ADB).
The Project has been executed following the Red FIDIC by the Design of OJSC Kyrgyzgiprostroy.
Details of the construction works are indicatively given below;

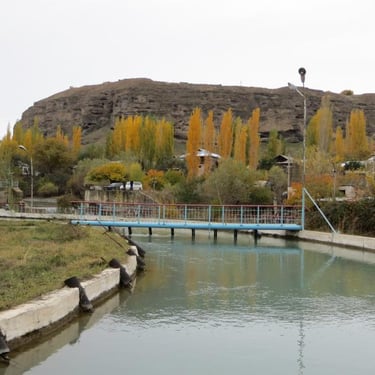

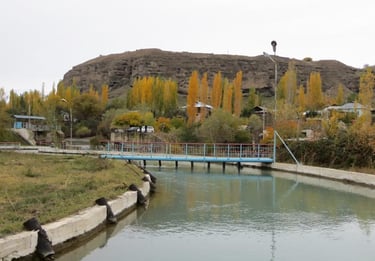

Water Infiltration gallery
bridge slotted pipes Dia.1600-1000mm, 300m
Protective embankment 350m (gabions, reno matress)
HDPE pipeline 4,7km Dia.1000mm

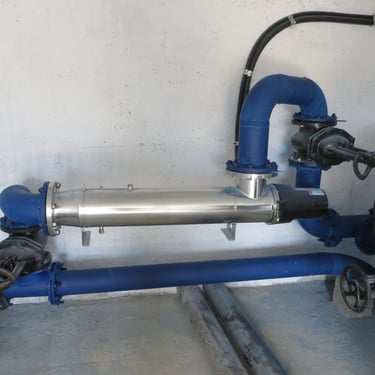

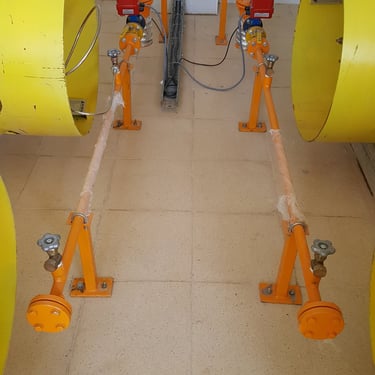

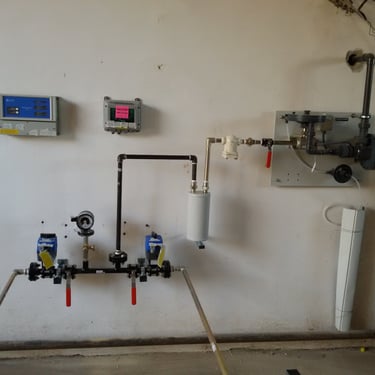

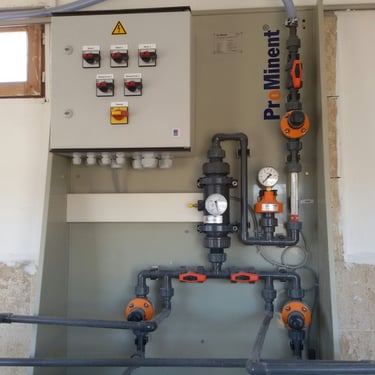

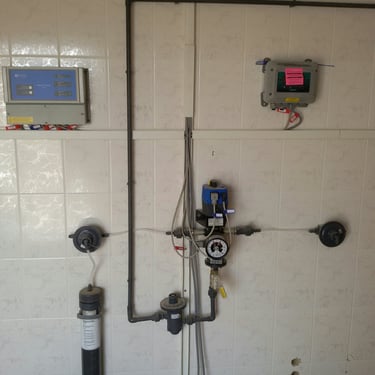

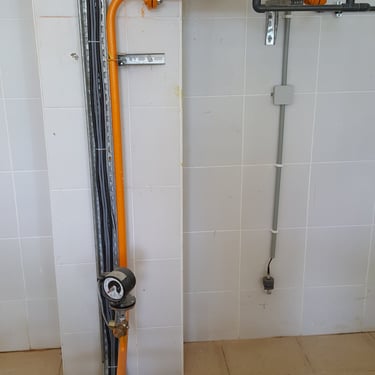

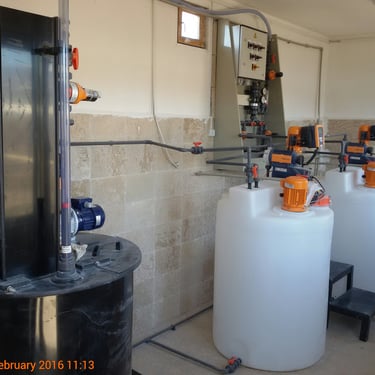

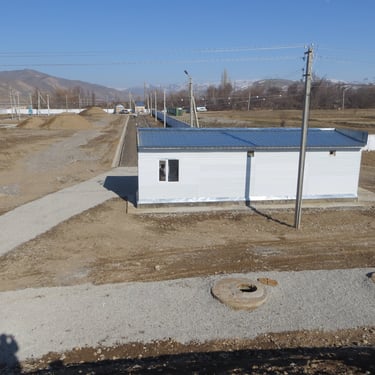

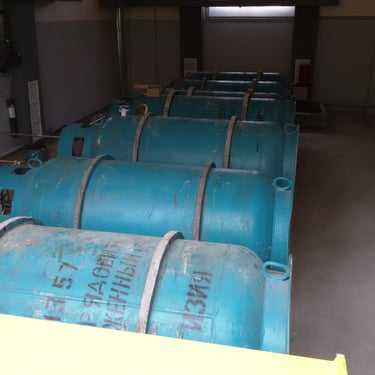

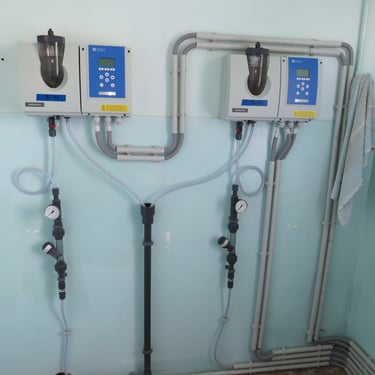

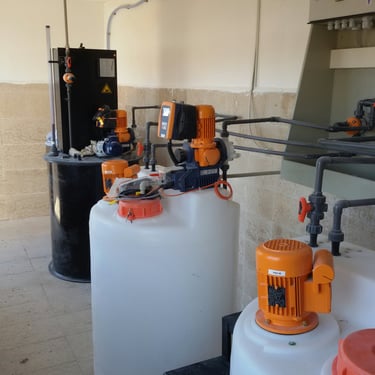

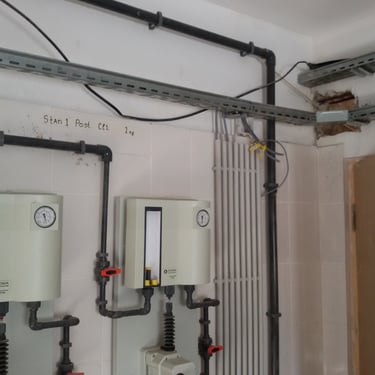

Chlorination plant (vacuum)

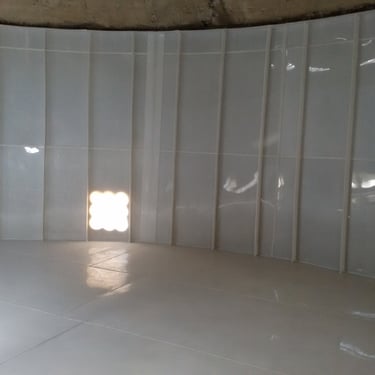

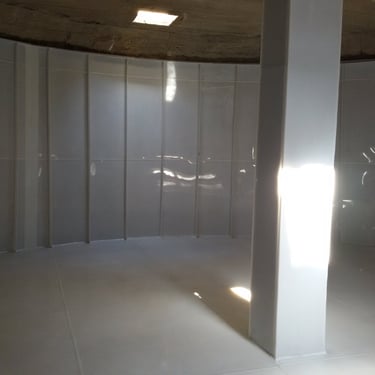

Water reservoirs 2 x 6000m3

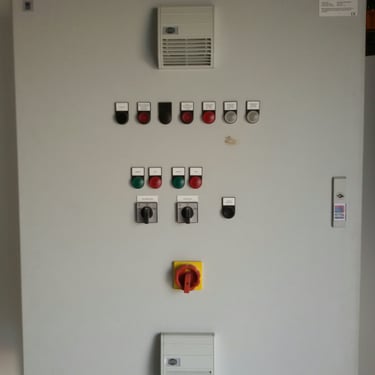

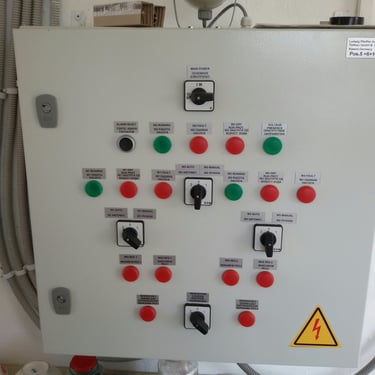

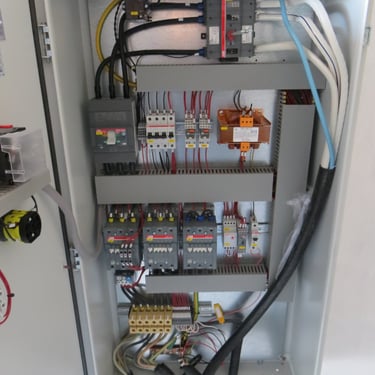

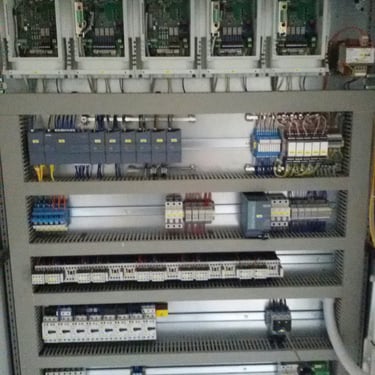

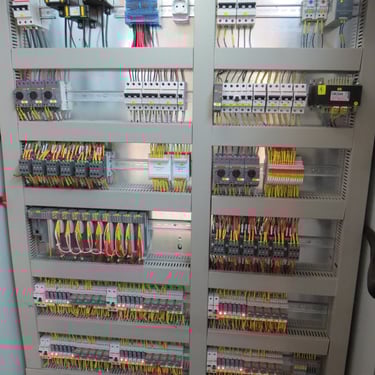

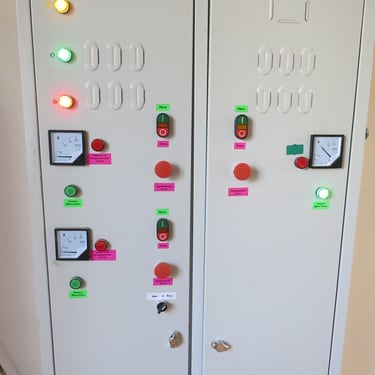

Electrical and mechanical installations

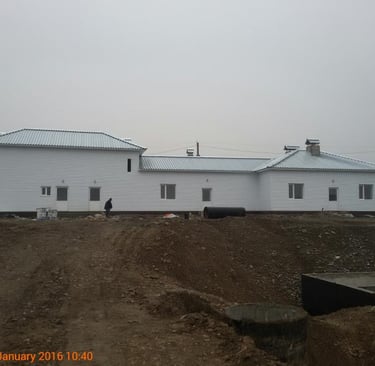

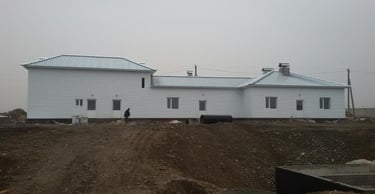

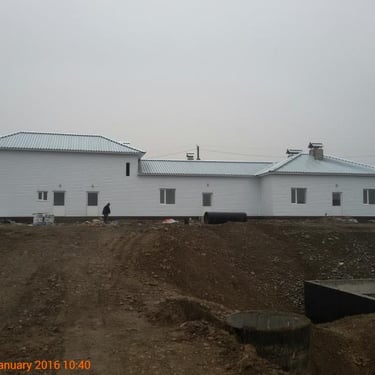

Improvement of Water Supply and Sewerage System for Jalal-Abad City, Kyrgyzstan
Improvement of Water Supply and Sewerage System for Jalal-Abad City, Kyrgyzstan.
Contract No. EARR/2268/CS/11
Contract Value: 10,5 mil USD
My Role: from June 2015 until June 2016: The Contractor's EIA Site Manager
The Contractor: Ludwig Pfeiffer Hoch - und Tiefbau GmbH & Co.KG
The Employer: State Agency of Architecture, Building and Housing and Communal Services at Government Kyrgyzstan, City administration of Jalal-Abad
The Project Manager: EPTISA
The Project was financed by the Asian Development Bank (ADB).
The Project has been executed following the Red FIDIC by the Design of OJSC Kyrgyzgiprostroy.
Details of the construction works are indicatively given below;

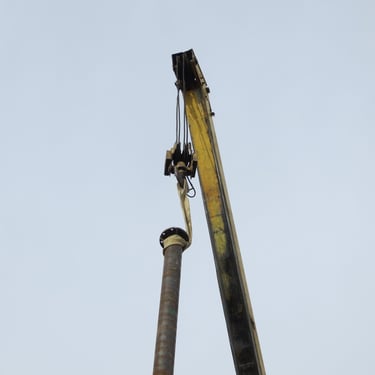

Water wells 6 x 135m
Technological bridge 135m
Construction of main distribution HDPE water line OD 500mm, 12,4km

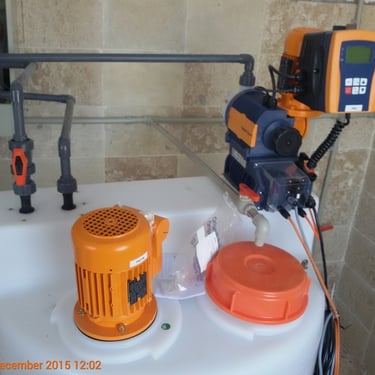

Chlorination plant (vacuum)
New Water reservoirs 2x3000m3
sewage pipeline 3km (OD 350, 200)

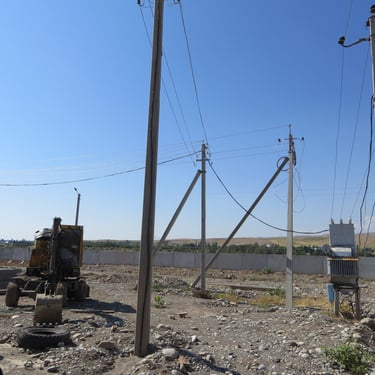

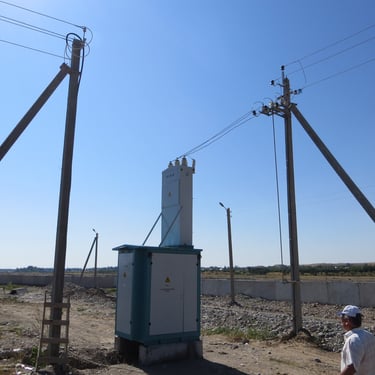

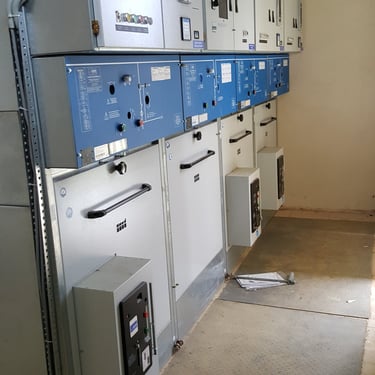

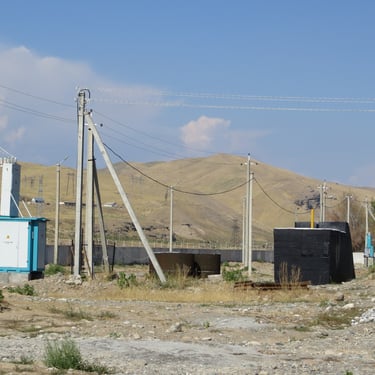

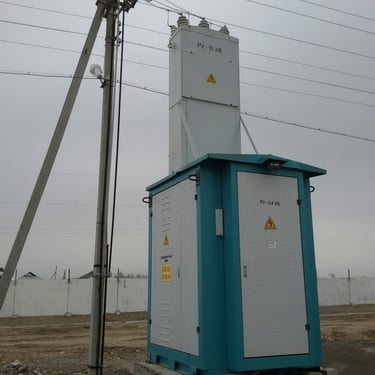

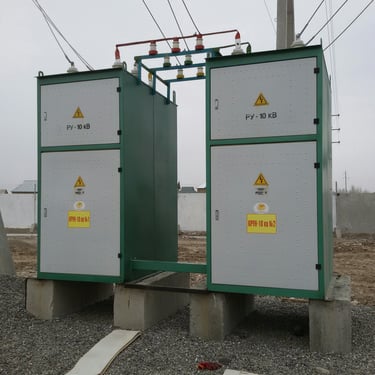

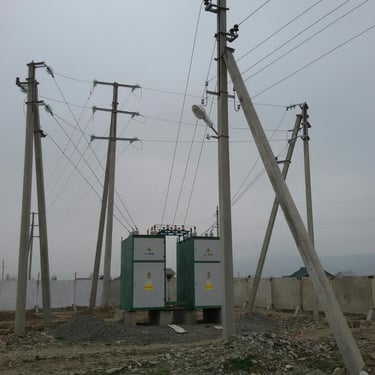

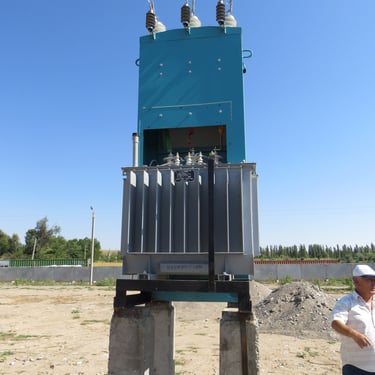

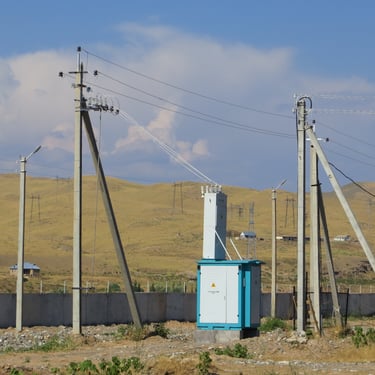

transformer stations 4x250kVA

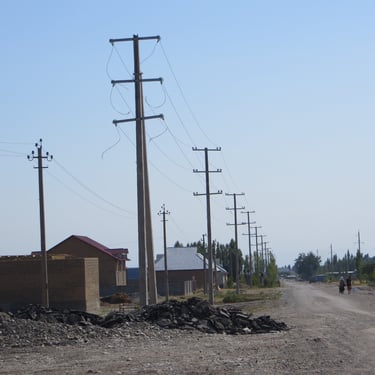

Electrical HV power supply line HV 10kV
Rehabilitation and Improvement of the Water Supply and Sewerage System for Bazar-Korgon Village, Kyrgyzstan
Rehabilitation and Improvement of the Water Supply and Sewerage Sytem for Bazar-Korgon Village, Kyrgyzstan.
Contract No. EARR/2268/CS/11
Contract Value: 4,5 mil USD
My Role: from June 2015 until June 2016: The Contractor's EIA Site Manager
The Contractor: Ludwig Pfeiffer Hoch - und Tiefbau GmbH & Co.KG
The Employer: State Agency of Architecture, Building and Housing and Communal Services at Government Kyrgyzstan, Bazar-Korgon Aiyl District
The Project Manager: EPTISA
The Project was financed by the Asian Development Bank (ADB).
The Project has been executed following the Red FIDIC by the Design of OJSC Kyrgyzgiprostroy.
Details of the construction works are indicatively given below;
Construction of new water distribution line OD 110 – OD 250mm, 4,5 km
Rehabilitation of transmission main water line 12,4 km
Chlorination plant (vacuum)
Rehabilitation of water wells 2x85m
Construction of new water well 1x85m
sewage system dia.350mm 2,4km

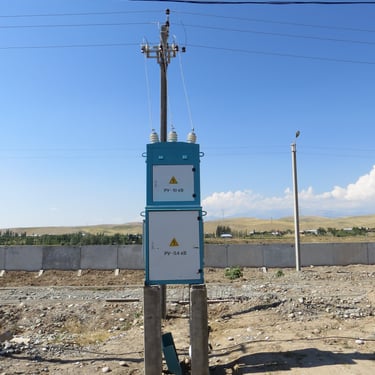

transformer stations (1xKTP-250, 1xKTP-160)
Electrical HV power supply line HV 10kV
Improvement of Water Supply and Sanitation in Balykchy and Cholpon-Ata, Kyrgyzstan
Improvement of Water Supply and Sanitation in Balykchy and Cholpon-Ata, Kyrgyzstan.
Contract No. 2556-MKT-3.11
Contract Value: 1,6 mil USD
My Role: from June 2015 until June 2016: The Contractor's EIA Site Manager
The Contractor: Ludwig Pfeiffer Hoch - und Tiefbau GmbH & Co.KG
The Employer: Water Supply Company of Kyrgyzstan
The Project Manager: DOHWA Engineering Co. LTD
The Designer: OJSC Kyrgyzgiprostroy
The Project was financed by the Asian Development Bank (ADB)
The Project has been executed following the Harmonized Red FIDIC Contract.
Details of the construction works are indicatively given below;

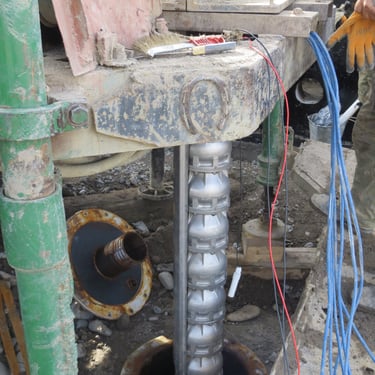

1 well is rehabilitated / Novaya borehole in Balykchy - 100m3/h, 45kW
2 wells are rehabilitated / Bakyt and Chkalova in Cholpon-Ata - 30kW
Reconstruction of Water Intake Site in Cholpon-Ata / 1 newly constructed and 6 rehabilitated wells - 160m3/h, 55kW
existing reservoir is rehabilitated - 90m3

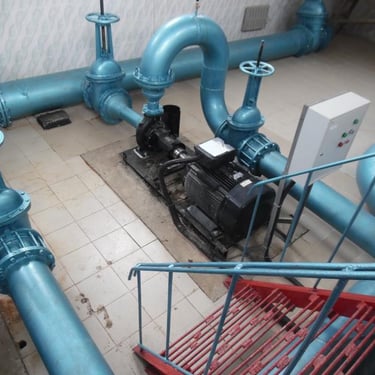

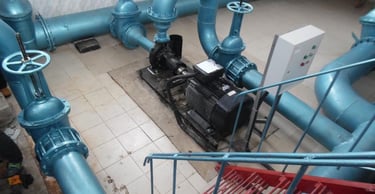

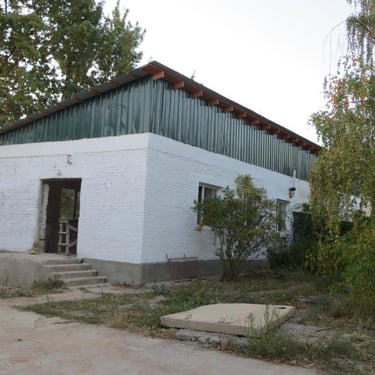

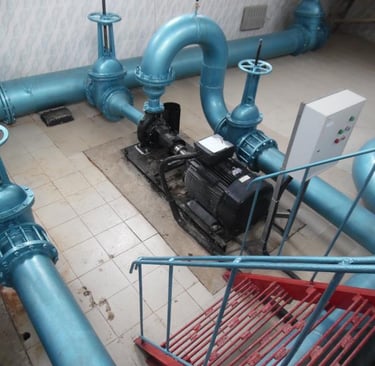

Rehabilitation of the existing 2nd level Pumping Station / Civil, Mechanical and Electrical works - 3 x 75kW
